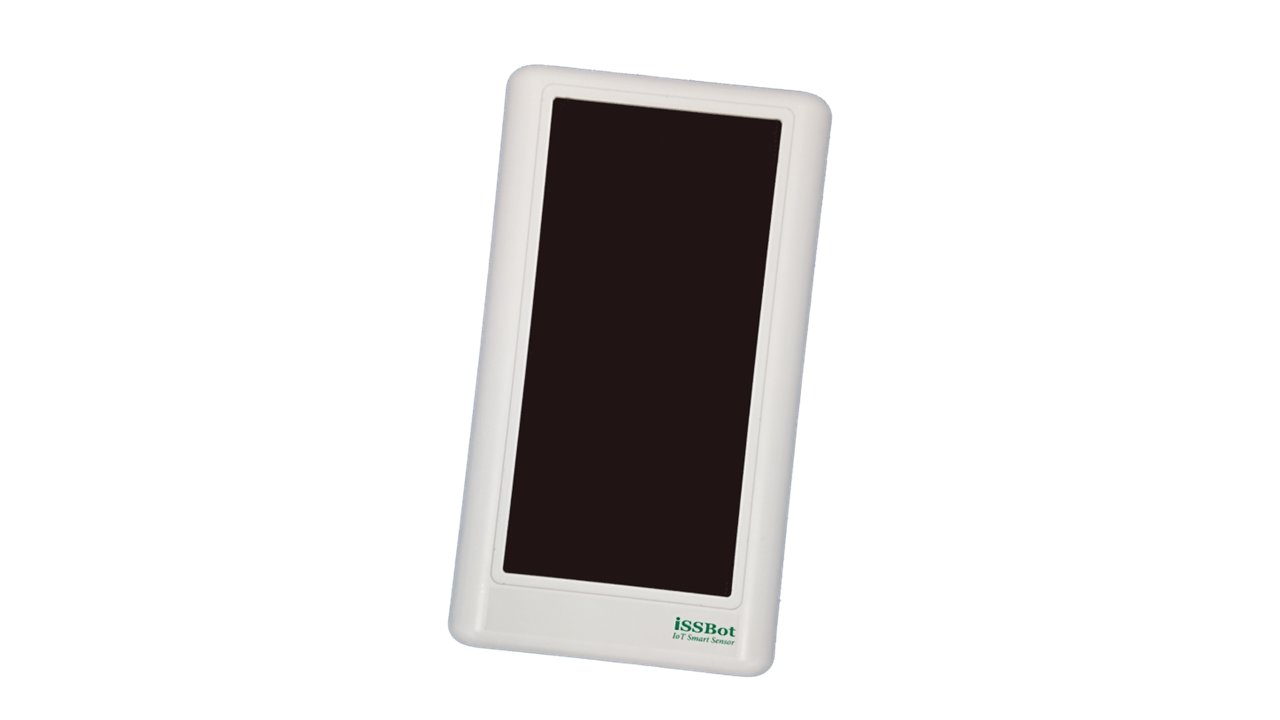

IRIICHI

Two-way communication sensor utilizing energy harvesting technology which measures CO2, temperature, and humidity of the environment.

LoRaWAN® compatible
Real-time data collection over a wide area is possible through long-distance communication.
Achieves the industry’s first two-way communication
Bi-directional communication between the sensor and platform enables remote monitoring and operation.
Maintenance-free.
Incorporating energy harvesting technology into the sensor, battery replacement is unnecessary by using a solar panel that can generate electricity with indoor light.
Support labour saving
Automated tasks minimize the involvement of workers and support labour saving
Since there are no restrictions on power supply, sensors can be installed freely.
By arranging multiple environmental sensors, even large floors can be centrally managed in real time.
If the set limit is exceeded, an alert signal is sent to the customer.
When the remaining battery level is low, an alert signal is emitted to notify the customer (prompt dispatch of maintenance personnel)
High quality, low cost, stable mass production system established.

Item	Specification
Wireless specification	LoRaWAN®
Measurement object	Temperature, Humidity, CO2
Measuring range, resolution	Temperature: -10deg~+50deg, 0.01deg / Humidity: 10%RH~90%RH (Keep away from condensation), 0.01%RH / CO2: 400ppm~5000ppm, 1ppm
Measurement accuracy	Temperature: +/-0.2deg / Humidity: +/-1.8%RH / CO2: +/-(30ppm+3% of reading) ※Auto calibration
Measurement interval	Default: 15minutes / Setting range: 15 minutes ~ 1440minutes can be changed automatically (1 minute unit)
Continuous operating conditions	Continuous operation for 24 hours is possible by irradiating light of 200Lx daylight white LED for 8hours a day (when measurement interval is 15 minutes)
Operation temperature	Temperature：-10deg~+50deg / Humidity：10%RH~90%RH (Keep away from condensation) ※ Indoor use only
Size	W76mm x D134mm x H23mm
Weight	130g
